The Spider Satellite:

  • monitors inputs
  • controls outputs
  • sends data via low cost Short Burst Data (SBD)
  • generates SMS and e-mail alarms
  • offers 2-way voice communications
  • logs (records) data
  • communicate via integrated LAN/Iridium interfaces
  • displays system/channel information on LCD
  • requires no system integration or custom software
  • is set up through user friendly "Internet surfing" approach
  • is a complete system: Spider, satellite modem, antenna, lightning arrestor and all cables

The Spider Satellite is designed for long term remote monitoring and control and provides powerful remote access and alarming. It interfaces with a wide range of digital, analog and smart sensor and meters. With integrated battery charger the Spider can control and power the satellite modem, sensors and other devices.

Once installed the Spider will log data and automatically send Short Burst Data (SBD) reports . Any alarm can activate outputs, send SMS, and alarm messages and trigger reports.

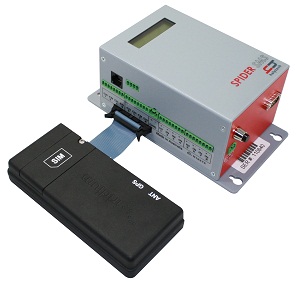

spider satellite

Benefits

Proven Reliability - used in the toughest environments

Easy to use – simple familiar web browser interface

Easy to install –

  • Internal battery charger - charges battery from solar panels or mains
  • Integrated mounting

No special software

  • setup and download using browser
  • reports sent straight to your PC or server
  • text/csv reports open in Excel
  • receive reports via email or FTP

No licenses, royalties or service agreement

Large internal memory – local backup of data

Expandable - can log more than 400 channels

  • SDI - 12 (multi-sensor multi-channel)
  • Halytech wireless network
  • Halytech RIM

Built-in Display - view channel and system information without PC

General

Physical

Dimensions: (approx) 110 (W) x 200 (H) x 85 (D) mm

Weight: (approx) 800 g

Enclosure: ABS rated IP - 50 with integrated mounting

Operating temperature: -5 to +50 degrees Celsius

Logger

Capacity: approximately 25,000 records

Storage memory: Battery backed RAM

Time resolution: 1 second

Download format: CSV file

Battery Charger

Built in SLA battery management system

Source: solar panel and/or mains charger

Warranty

Factory backup 12 months parts and labour guarantee

Inputs/Outputs

Inputs

Number of inputs:

  • 8 multi-type inputs
  • 2 system inputs
  • 300+ Modbus channels
  • 100+ SDI 12 (multi sensor multi channel)
  • 400 RF channels

Multi-type: Digital, analogue, counter, event (individually user definable)

Digital Inputs: Type 0 -12V DC Voltage or voltage-free switch contact

Analogue Inputs: Resolution 12 bits

  • 4 - 20 mA, common ground
  • 0 - 1V, common ground
  • 0 - 2.5V, common ground
  • 0 - 5V, common ground
  • 0 - 10V, common ground

Counter / Event Inputs:

  • Maximum pulse rate 10 Hz
  • Range 0 - 99,999

System Inputs:

  • Type System temperature
  • Battery voltage
  • Charger status

Outputs

Number of outputs 8

  • Latching Relay Contacts
  • 1A 30V DC resistive

Alarms/Comms

Alarms

Number of alarms: 16

Type: SMS + e-mail + voice

Trigger: User definable input and trigger point

Number of SMS / e-mail messages: 1 per alarm, user definable

Number of e-mail addresses: 2 per alarm, user definable

Local Display

2 line 16 character back lit LCD

Push-button sequencer

Displays system status and all inputs

Communication Interfaces

Ethernet 10 base-T RJ-45

Integrated Iridium Satellite module

Antenna: external

Synthesised speech: text to speech technology

RS-232 Serial Interface

RS-485 Multi-drop, Multi-point Serial Interface

Accessories

WRX (RF expansion module)

Remote Input Module (RS-485 expansion module)

Spider Battery (Lead Acid Battery)

Spider Power Supply
