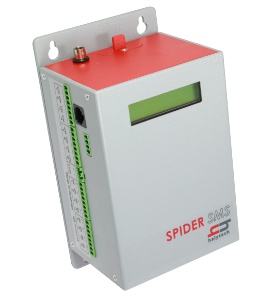

Spider SMS compact Data LoggerSpider SMS LC

Halytech Spider SMS is a compact low power data logger with telemetry. It is the complete remote monitoring, control and alarm system.

The Spider:

  • requires no system integration or custom software
  • can be set up by any computer and any operating system
  • monitors 100's of inputs (analog, digital, counters, frequency, SDI-12, Modbus, RF and more ...)
  • controls outputs
  • generates SMS, e-mail and voice alarms
  • responds to SMS commands
  • logs (records) data
  • sends data reports via e-mail or FTP
  • communicates via integrated GSM/NextG/Satellite modem
  • displays system/channel information on LCD
  • is set up through user friendly "Internet surfing" approach
The Spider SMS is designed for long term remote monitoring, control and alarming applications.  It interfaces directly with a wide range of environmental and industrial sensors.

Once installed the Spider will log data and automatically send reports via e-mail or FTP.  Any alarms can activate outputs, send SMS, email and voice alarm messages and trigger reports.

Every Spider has a built-in web server. It allows communication with most modern computers regardless of brand or operating system, without the need to install any software.


Proven Reliability - field proven for more than 10 years

Easy to use – simple familiar web browser interface

Easy to install

  • Compact IP-50 enclosure
  • Internal battery charger
  • Integrated mounting brackets

No special software

  • setup and download using browser
  • reports sent straight to your PC or server
  • text/csv reports open in Excel
  • receive reports via e-mail or FTP

No licenses, royalties or service agreement

Large internal memory – local backup of data

Expandable - expand up to 400 channels

  • Halytech wireless network
  • Halytech RIM
  • Modbus over Ethernet of RS-485

Inbuilt Display - view channel readings and system information without PC



Dimensions: (approx) 110 (W) x 200 (H) x 85 (D) mm

Weight (approx) 800g

Enclosure: ABS rated IP - 50 with integrated mounting

Operating temperature: -5 to +50 degrees Celsius (-20 to +70 degrees on request)


Capacity: approximately 25,000 records

Storage memory: Battery backed RAM

Time resolution: 1 second

Download format: CSV file

Battery Charger

Built-in Sealed Lead Acid battery management system

Source: mains charger or Solar panel


Factory backup 12 months parts and labour guarantee



Number of inputs:

  • 8 multi-type inputs
  • 3 system inputs
  • 400 RF wireless channels (via WRX expansion module)
  • 100+ Modbus inputs (via RS-485)
  • 60+ SDI-12 Inputs (via RS-485)

Multi-type: Digital, analogue, counter, event (individually user definable)

Digital Inputs: Type 0 - 12V DC Voltage or voltage-free switch contact

Analogue Inputs: Resolution 12 bits

  • 4 - 20 mA, common ground
  • 0 - 1V, common ground
  • 0 - 2.5V, common ground
  • 0 - 5V, common ground
  • 0 - 10V, common ground

Counter / Event Inputs

  • Maximum pulse rate 10 Hz
  • Range 0 - 99,999

System Inputs:

  • Type System temperature
  • Battery voltage
  • Charger status


  • 40 Devices
  • 8 Registers per device


Number of outputs 8

  • Latching Relay Contacts
  • 1A 30V DC resistive



Number of alarms: 16

Type: SMS + e-mail + voice

Trigger: User definable input and trigger point

SMS / e-mail / voice message: 1 per alarm, user definable

Number of phone numbers: 3 per alarm, user definable

Number of e-mail addresses: 2 per alarm, user definable

Local Display

2 line 16 character back lit LCD

Push-button sequencer

Displays system status and all inputs

Communication Interfaces

Ethernet 10 base-T RJ-45

Cellular phone module Built-in GSM or NextG

Antenna: external

Internet connectivity: GPRS or 3G (modem type and network dependent)

Synthesised speech: text to speech technology

RS-232 Serial Interface

RS-485 Multi-dropped, Multi-point Serial Interface


WRX (RF expansion module)

Remote Input Module (RIM) (RS-485 expansion module)

Spider Battery (Lead Acid Battery)

Spider Power Supply
