AMR
Automatic, Scalable Meter Reading for Utilities and Facilities
A complete telemetry solution for automatic utility meter reading. Available in both wired and wireless configurations, AMR integrates seamlessly with Modbus meters, pulse meters, SCADA, BMS, and Digital Twin platforms. Rugged enclosures, backup power, and modular expansion make AMR the ideal choice for large-scale building, campus, and industrial metering projects.
Key Features
Flexible Deployment Options
Choose between wired or wireless expansion, or mix both to match your site requirements.
Scalable Meter Networks
– Up to 320 meters with wired RIM modules (Modbus RS-485)
– Up to 400 meters with wireless WTX modules
Seamless SCADA, BMS & Digital Twin Integration
Interfaces with building management and enterprise systems via Modbus/TCP, DNP3, FTP, or email reports.

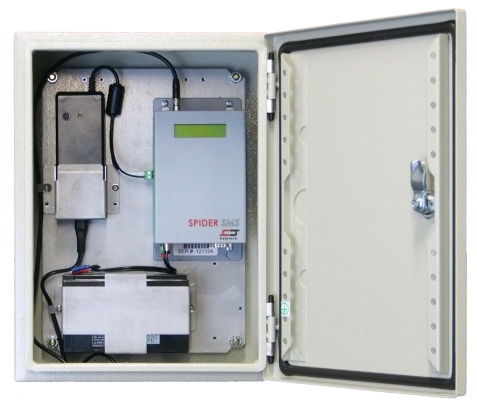

All-in-One, Outdoor-Ready Solution
Supplied in a weatherproof enclosure with internal battery backup and charger, for reliable long-term operation.
Automatic Data Reporting
Generate CSV usage reports and deliver them by email or FTP. Schedule by interval or event for proactive monitoring.
Alarm & Control Functions
SMS and email alerts for tamper detection, abnormal consumption, or communication faults.
Simple, License-Free Setup
Web-browser configuration — no proprietary software, licenses, or ongoing fees required.
-
Enclosure: IP66/67-rated outdoor housing
Dimensions: approx 300 (W) x 400 (H) x 200 (D) mm
158mm (W) × 90mm (H) × 46mm (D) (base Spider unit inside enclosure)
Weight: 12kg
Temperature Range: -20°C to +60°C
Warranty: 12-month manufacturer’s warranty
-
Power Input: 12–22V DC (mains or solar)
Battery: External SLA 12V with built-in charger
Backup: Automatic switchover during mains power loss
-
Local Inputs:
8 x Multi-type sensors
Analogue (0–2.4V / 0–5V / 0–10V / 4–20mA)
Digital (switch / event / counter / meter)
SDI-12 & Modbus sensorsExpansion Options:
– Wired: Up to 10 × RIMs via RS-485 (16 or 32 meters per RIM, max 320 channels)
– Wireless: Up to 400 channels via Halytech WTX wireless modulesVirtual Inputs:
8 × Calculation / logic-basedSerial Interfaces:
RS-232
RS-485 -
Total: 8
Number of Timers: 8 (1 per control)
Type: Normally open latching relay contacts
Contact Rating: 1A @ 30V DC (resistive load)
Activation Methods: Browser interface, SMS, timer, keypad, alarm
-
Memory Type: Non-volatile flash
Storage Capacity: ~300,000 records
Report Format: CSV
-
Ethernet: 10/100 base-T
Wireless: 4G LTE Cat-M1, Wi-Fi
Antennas: 1 × external 4G whip (main), 1 × external 4G puck (diversity)
SIM: Nano SIM
-
On-board RTC (Real-Time Clock)
Automatic NTP Synchronisation
-
📎 © 2025 Halytech. Specifications subject to change without notice.
Accesories
How It Works
-
Deploy the AMR unit in its outdoor enclosure with mains or solar backup.
-
Choose Wired (RIM modules) or Wireless (WTX modules) to integrate pulse or Modbus meters.
-
Use the built-in web interface to set schedules, alarms, and reporting intervals.
-
Access reports directly or feed data into SCADA, BMS, or Digital Twins for enterprise-wide insights.
Applications
Building Automation
Research & Science
Government & Regulators
Simplify Your Meter Management System
No complex software or specialised training required. Spider 2 provides a reliable, web-based solution for logging, alarming, and reporting, ready to integrate seamlessly with your existing systems.
